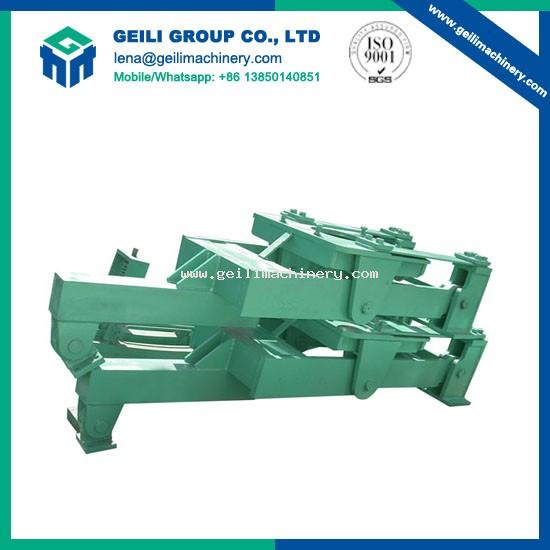

Casting process vibration device is made up of four parts, oscillation platform,
demi-plate spring device, reducer and eccentric shaft device.
Oscillation
platform: it is of welded machining structure; the joint part mounted on it for
cooling water inlet and outlet can be disassembled rapidly; for the water inlet
and outlet of mould and foot roller
Semi-plate
spring device: Substituting the upper part’s rigid guiding arm. Lessen the hinged
point to ensure stable oscillation.
Reducer:
being of pinwheel structure, long life span and high efficiency.
Eccentric
shaft device: the swing will be adjusted by adjusting the position of eccentric
shaft and eccentric sleeve.
Our Service:
1) Providing professional proposal of suitable production line as per
customers' invest and capacity requirement
2) Providing turn-key service of designing,
manufacturing, installation and commissioning for the whole steel plant production
lines to meet customers requirement
3) Providing foundation layout and arrangement diagram for your plant
4) Providing technical support. We will send engineers to
your factory to install and debug the production lines until the final products
are meet to customers' own request.
5) Good after-sales service will be provided. Our long-term technical service
will be provided if you want to adjust the production line, develop new
products or improve the equipment.
6) Quality warranty will be promised.
7) Excellent quality and best price
8) Prompt reply for your inquiry
Steel-making Working Process:
Mechanical part:
1) Ladle turret
2) Tundish
3) Tundish car
4) Mould
5) Mould vibration device
6) Vibration drive device
7) Protecting cover for vibration device
8) Secondary cooling spraying frame
9) Secondary cooling spraying pipe
10) Spraying nozzle for secondary cooling water
11) Support roller device for secondary and thirdly cooling
12) Withdrawal straightening machine
13) Transmission device for withdrawal straightening machine
14) Universal joint
15) Rigid dummy bar
16) Dummy bar storage device
17) Guide roller for dummy bar storage device
18) Billet delivery roller table
19) Hydraulic billet pusher
20) Platform for billet collection
21) Flame cutting machine/hydraulic shear (determined by customers)
22) Electrics control system
23) Control system for mould vibration
24) Control system for withdrawal straightening machine
25) Effective control system for dummy bar
28) Control system for billet delivery roller table
29) Control system for billet out
30) Control system for central hydraulic station
31) Steel structure
32) Casting platform
33) Platform for dummy bar storage
Auxiliary system
34) Hydraulic system
35) Discharging device for secondary cooling steam
36) Control system for secondary cooling water
37) Suspended operation box for withdrawal straightening part
38) Special configuration can be provided in accordance with customers requirements
