Continuous Casting Machine of Crystallizer

Product Name: Steel Casting Mould

Original Image

Company Profile Company Name：Geili Machinery (Fujian) Group Co., LtdContact Person：Vicky YuTel ：86-594-6975208 Fax：86-594-6975166 Email：vicky@rerollingmillccm.com

Products description:

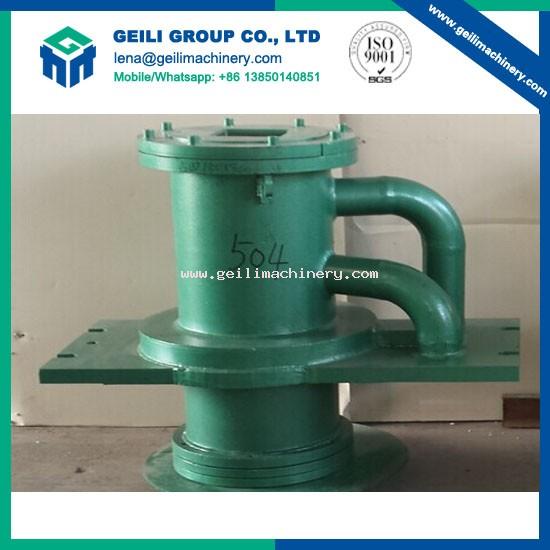

Steel Casting Mould

Crystallizer plays role in steel making process, it is a steel ingot mould with compulsive water-cooling, capable of producing square, round and rectangular billets.

Application:
The mould is available for billet caster, bloom caster, beam

blank caster, slab/thin slab caster

Adventage:

Lower investment
Steady performance
Products are customized for different needs

High thermal conductivity

Technical Parameter:

Casting radius: R3-13M
Copper length(mm):812;850;900;1000

Copper tube length(mm): 812;850;900;1000

Working Process:

Mechanical part:

1) Ladle turret/ladle moving car/ladle fixed support (determined by customers)

2) Tundish

3) Tundish car

4) Mould

5) Mould vibration device

6) Vibration drive device

7) Protecting cover for vibration device

8) Secondary coolings spraying frame

9) Secondary coolings spraying pipe

10) Spraying nozzle for secondary cooling water

11) Support roller device for secondary and thirdly cooling

12) Withdrawal straightening machine

13) Transmission device for withdrawal straightening machine

14) Universal joint

15) Rigid dummy bar

16) Dummy bar storage device

17) Guide roller for dummy bar storage device

18) Billet delivery roller table

19) Hydraulic billet pusher

20) Platform for billet collection

21) Flame cutting machine/hydraulic shear (determined by customers)

22) Electrics control system

23) Control system for mould vibration

24) Control system for withdrawal straightening machine

25) Effective control system for dummy bar

28) Control system for billet delivery roller table

29) Control system for billet out

30) Control system for central hydraulic station

31) Steel structure

32) Casting platform

33) Platform for dummy bar storage

Auxiliary system

34) Hydraulic system

35) Discharging device for secondary coolings steam

36) Control system for secondary cooling water

37) Suspended operation box for withdrawal straightening part

38) Special configuration can be provided in accordance with customers requirements

Product Images: ：
