Ladle Turret for CCM

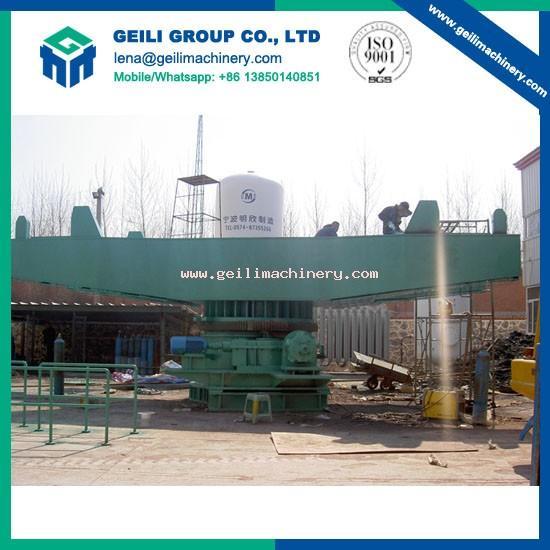

Ladle turret plays the role of move the molten steel from ladle to pouring position. It consist of Rotary arm, rotary bearing, transmission device


Technical Parameter:

1. Load Capacity: 50-200 ton.

2.  Angle of rotation: 360 degree

3. Rotating speed: 1 rotation/min.

4.  Swing motor capacity: 7.5-15kw

Steel-making Working Process:

Mechanical part:

1) Ladle turret

2) Tundish

3) Tundish car

4) Mould

5) Mould vibration device

6) Vibration drive device

7) Protecting cover for vibration device

8) Secondary cooling spraying frame

9) Secondary cooling spraying pipe

10) Spraying nozzle for secondary cooling water

11) Support roller device for secondary and thirdly cooling

12) Withdrawal straightening machine

13) Transmission device for withdrawal straightening machine

14) Universal joint

15) Rigid dummy bar

16) Dummy bar storage device

17) Guide roller for dummy bar storage device

18) Billet delivery roller table

19) Hydraulic billet pusher

20) Platform for billet collection

21) Flame cutting machine/hydraulic shear (determined by customers)

22) Electrics control system

23) Control system for mould vibration

24) Control system for withdrawal straightening machine

25) Effective control system for dummy bar

28) Control system for billet delivery roller table

29) Control system for billet out

30) Control system for central hydraulic station

31) Steel structure

32) Casting platform

33) Platform for dummy bar storage


Auxiliary system

34) Hydraulic system

35) Discharging device for secondary cooling steam

36) Control system for secondary cooling water

37) Suspended operation box for withdrawal straightening part
