Description:

Continuous Casting is the process whereby molten steel is solidified into a "semi-finished" billet, bloom,

or slab for subsequent rolling in the finishing mills. Prior to the introduction of Continuous Casting in the

 1950s, steel was poured into stationary molds to form "ingots". Since then, "continuous casting" has

evolved to achieve improved yield, quality, productivity and cost efficiency.

Specification:

Machine model          :   L100
Strand quantity          :  1 - 8 / customize
Radius(M)                  :   R3-14
Casting type               :  round, square, rectangular billet
Steel quality               :  Common carbon steel;
Bearing steel; Low alloy steel and stainless steel, etc.
Annual output (TON)       :  100K - 180K
Working Hour            :  >8 hrs

We promise:

1. Easy Operate, Minimum maintenance & down time
2. Specially hardened material for longer service life > 8 hrs /day
3. Innovative design, low power consumption
4. Heavy duty perform under harsh working condition.
5. OEM, World class Continuous Casting machine and foundry machinery
6. High productivity & optimum quality

After-Sales information

1. 1 year warranty period.
2. IN-TIME delivery
3. Free charges for Planning , designing, installing, training and debugging.
4. Long-term technical support.

Company Profile

 Fujian Geili Machinery Co., Ltd is a manufacturer specialized in research, development,

manufacture and sales of continuous casting machine in China. Our company owns a group

 of high quality R & D team and professional & efficient management staff. Through

 implementation of full quality management, our company has passed ISO9000 , SGS ,

IAF quality system certification. Our company has hired experts with technical expertise

 to ensure the company to be at industrial leading position and technological frontier.

                                         GEILI Motto

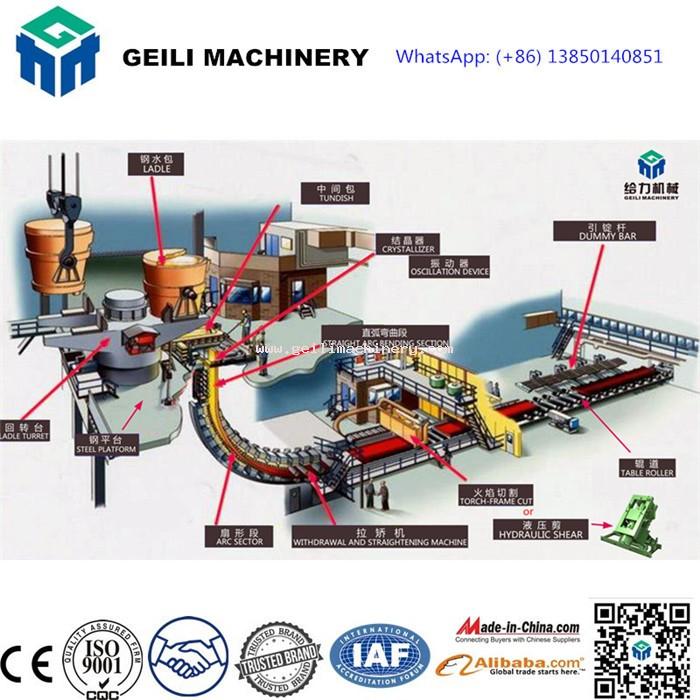

Equipment:

Ladle

Ladle Turret

Tundish

Overflow tank

Operation box

Tundish car

Mould

Mould cover

Vibration device

Spraying nozzle

Guiding section

The withdrawl and straightening machine

Dummy bar

The storage device of dummy bar

Table roller

Hydraulic shear

Cooling bed

Inspection rack for the mould

Water cooling system

Hydraulic shear
