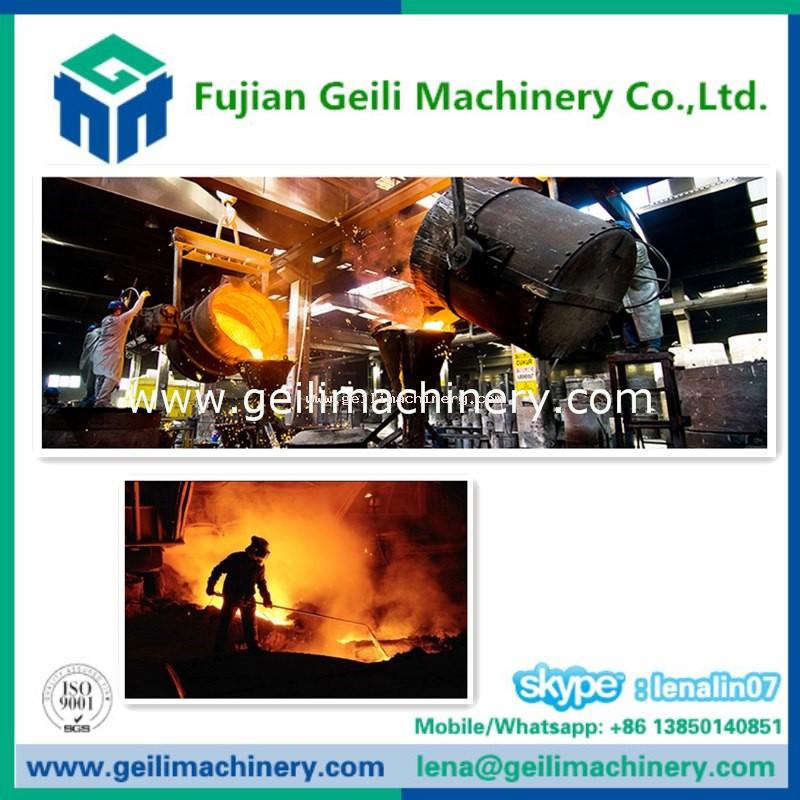

Steel ladle
casting steel ladle is important device in steel making. It used for pouring operations, after receiving the liquid metal in the blast furnace, transported by road to the mold at the pouring.

Features:
1.Resistance to burning hot metal ladle
2.Multi-purpose hot metal ladle
3.Safe and reliable design
4.Easy control

Steel-making Working Process:

Mechanical part:

1) Ladle turret

2) Tundish

3) Tundish car

4) Mould

5) Mould vibration device

6) Vibration drive device

7) Protecting cover for vibration device

8) Secondary cooling spraying frame

9) Secondary cooling spraying pipe

10) Spraying nozzle for secondary cooling water

11) Support roller device for secondary and thirdly cooling

12) Withdrawal straightening machine

13) Transmission device for withdrawal straightening machine

14) Universal joint

15) Rigid dummy bar

16) Dummy bar storage device

17) Guide roller for dummy bar storage device

18) Billet delivery roller table

19) Hydraulic billet pusher

20) Platform for billet collection

21) Flame cutting machine/hydraulic shear (determined by customers)

22) Electrics control system

23) Control system for mould vibration

24) Control system for withdrawal straightening machine

25) Effective control system for dummy bar

28) Control system for billet delivery roller table

29) Control system for billet out

30) Control system for central hydraulic station

31) Steel structure

32) Casting platform

33) Platform for dummy bar storage


Auxiliary system

34) Hydraulic system

35) Discharging device for secondary cooling steam

36) Control system for secondary cooling water

37) Suspended operation box for withdrawal straightening part

38) Special configuration can be provided in accordance with customers requirements

Our company:

We are a steel manufacturer in China, is professional in steel machinery with years's experience.  We can supply the whole production line, from induction furnace, CCM and rolling mills with high quality and competitive price
