Application Fields

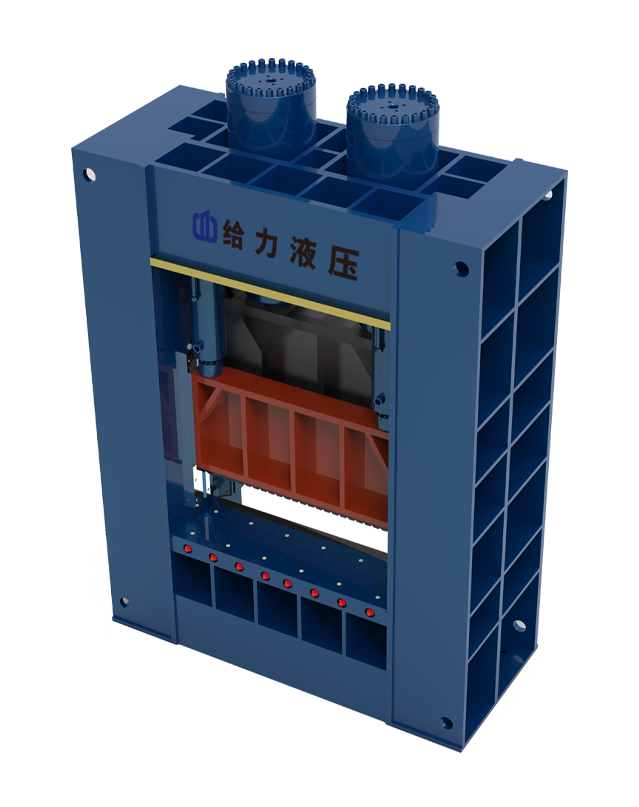

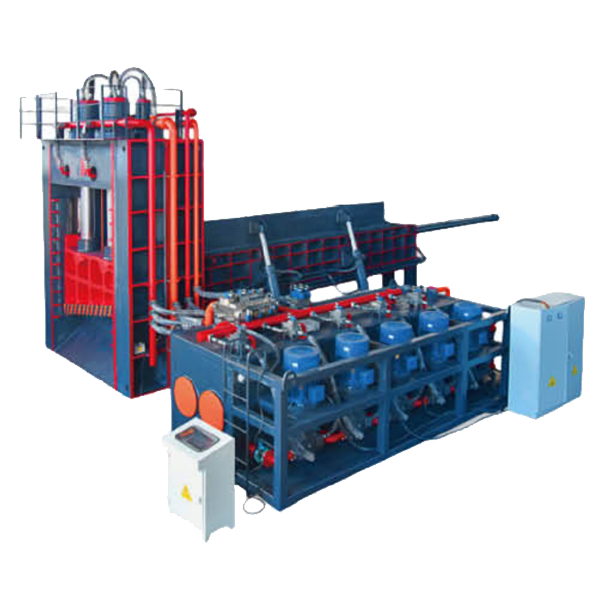

This machine specializes in shearing rejected steel products (blooms, square bars, I-beams, channels, pipes) and large structural components into furnace-ready scrap.
Technical parameters
| Model |
Shear Force(TON) |
Throughput Capacity(T/H) |
Blade Length(MM) |
Shear Angle |
Feed Chamber Size(MM) |
Cycles Per Minute |
Total Installed Power(Kw) |
| Q91L-Q2500 |
250 |
3-5 |
800 |
5 |
4000X1200x800 |
2-6 |
2*22 |
| Q91L-Q3150 |
315 |
3-5 |
800 |
5 |
4000X1200x800 |
2-6 |
2*22 |
| Q91L-Q4000 |
400 |
4-7 |
1000 |
5 |
5000x2000x800 |
2-6 |
2*37 |
| Q91L-Q5000 |
500 |
5-8 |
1300 |
5 |
6000x1500x800 |
2-6 |
2*45 |
| Q91L-Q6000 |
600 |
8-10 |
1300 |
5 |
8000x1600x1000 |
2-6 |
3*45 |
| Q91L-Q6300 |
630 |
8-10 |
1600 |
5 |
8000x1600x1000 |
2-6 |
3*45 |
| Q91L-Q8000 |
800 |
12-15 |
1800 |
5 |
8000x1800x1000 |
2-6 |
3*55 |
| Q91L-Q10000 |
1000 |
15-20 |
2000 |
5 |
10000x1800x1200 |
2-6 |
4*55 |
| Q91L-Q12500 |
1250 |
20-25 |
2500 |
5 |
12000x2500x2000 |
2-6 |
4*55 |
| Q91L-Q15000 |
1500 |
30-50 |
2500 |
5 |
12000x5000x2000 |
2-6 |
4*75 |
| Q91L-Q20000 |
2000 |
60-80 |
2700 |
5 |
14000x2700x2400 |
2-6 |
6*75 |
